LBK0504 - Product Brief
LMU20P1_Datasheet

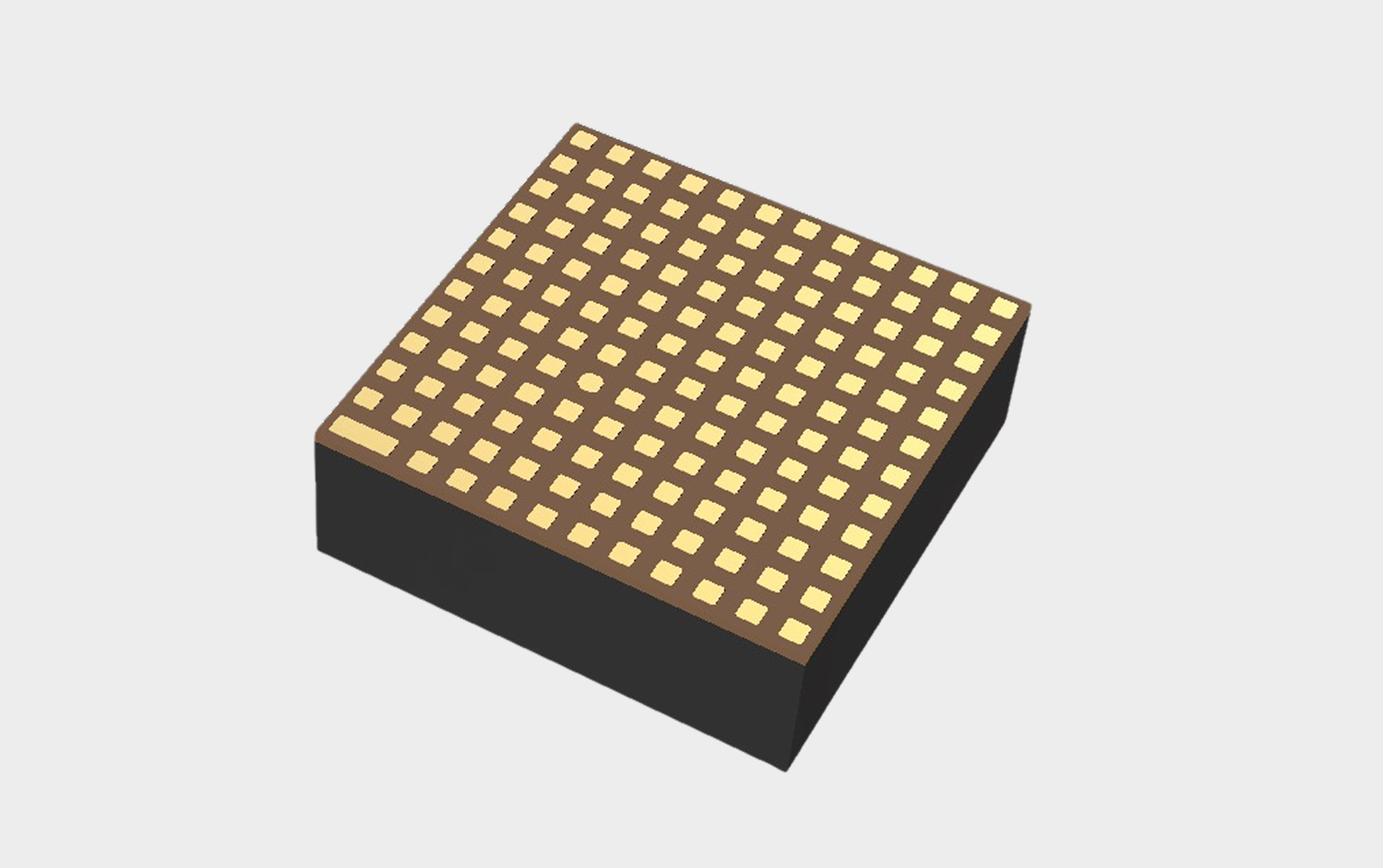

The LSC0580 is a fully integrated Power-System-in-Package designed for high-current power applications. It features Lotus Microsystems’ proprietary architecture. The device comes in a thin package integrating all passive components needed for operation.
With its high current capability and targeted output voltage range of 0.4 V to 1.2 V, the LSC0580 is ideally suited for vertical power delivery applications, including AI and ML accelerators. The package height also makes the device well suited for a new generation of compact, high power density power supplies designed for vertical power delivery networks (PDNs).
The LSC0580 integrates several protection features, including under-voltage lockout for auxiliary power supplies, over-temperature protection, and short-circuit protection.

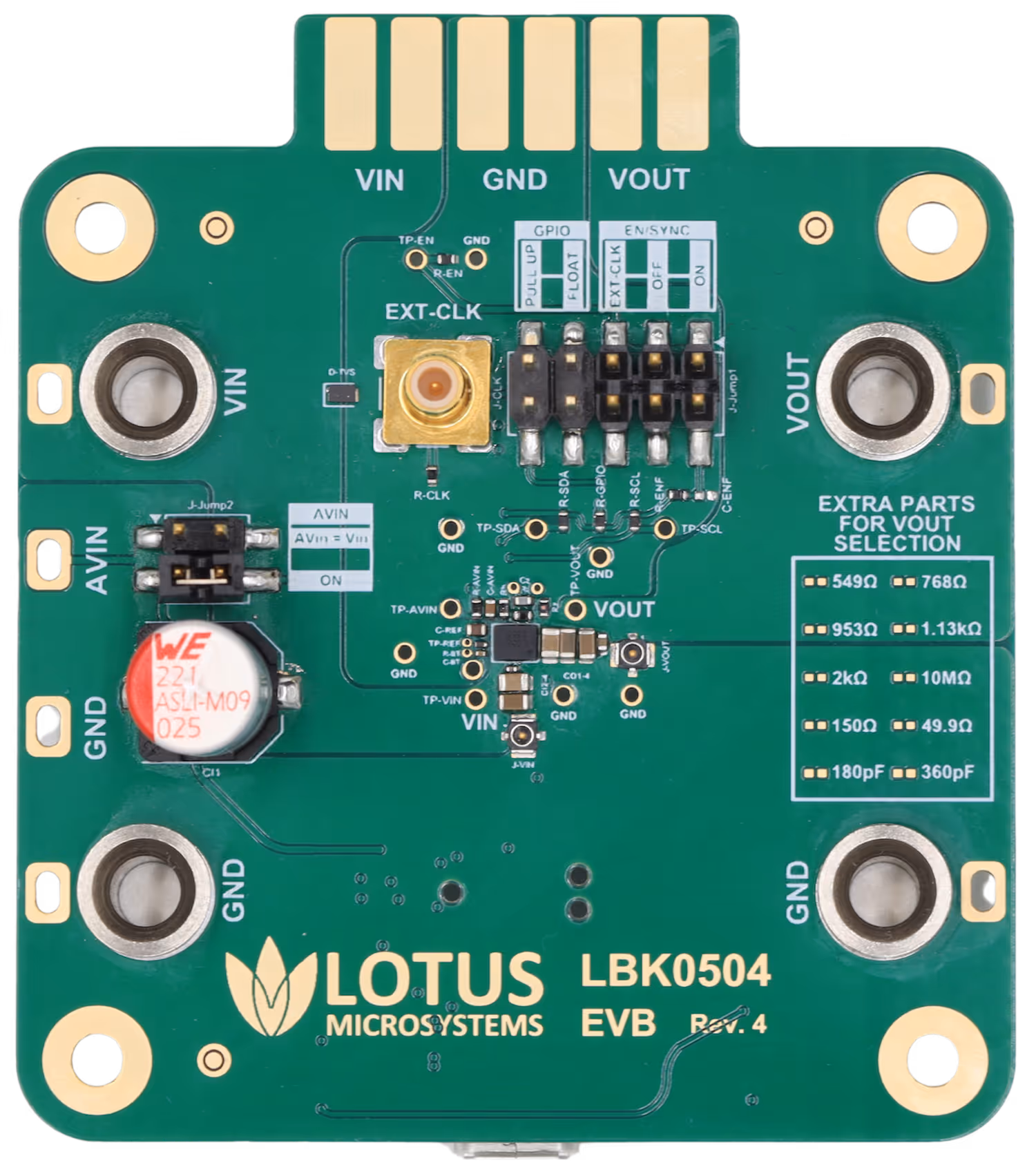

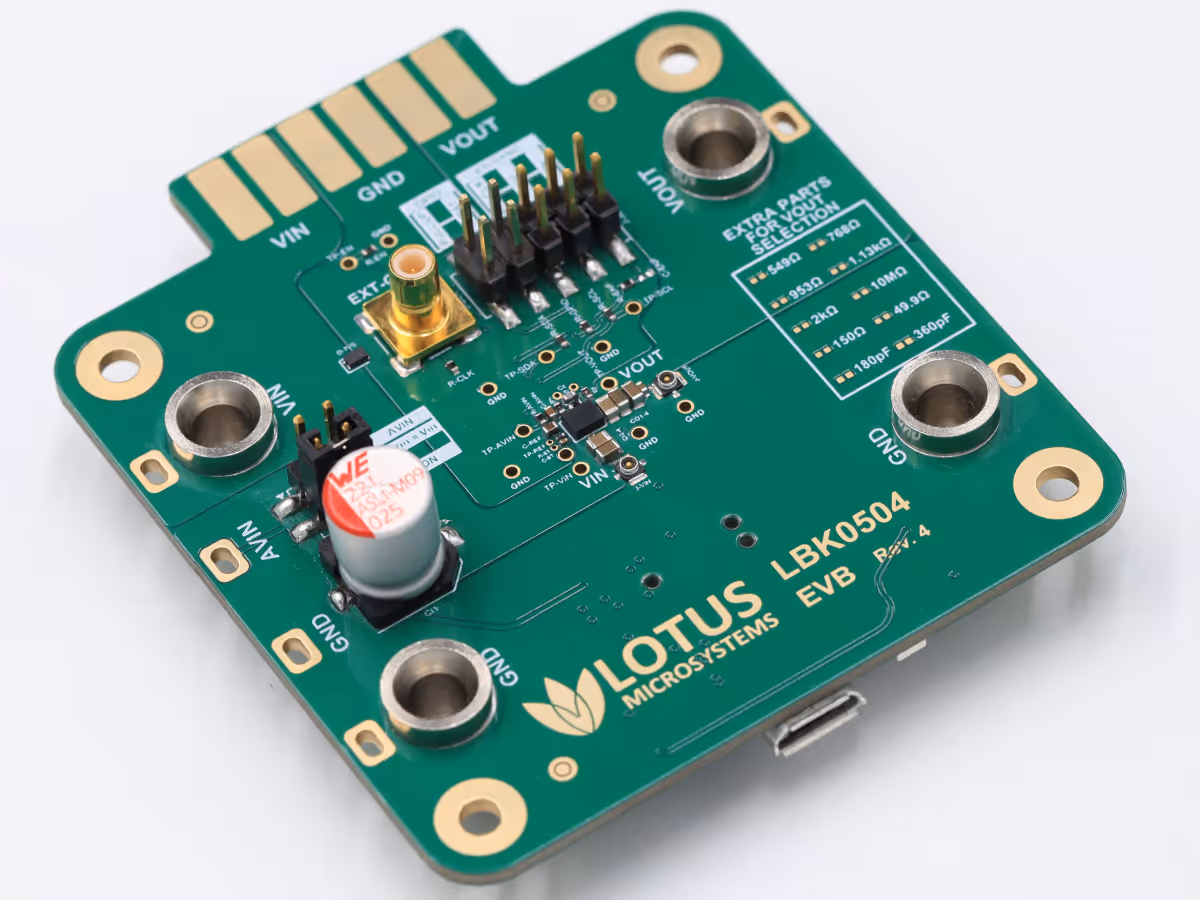

The LBK0504 evaluation board provides a streamlined platform for device characterization, providing dedicated test points the different signals. The output voltage is adjustable via a user-replaceable feedback resistor, and includes an SMB connector for synchronization to an external clock source.
The board also integrates a microcontroller on the bottom layer to manage register configurations and interface directly with the LMS PRISM Console.
Evaluation Board User Guide 100 mA Miniaturized Boost Converter

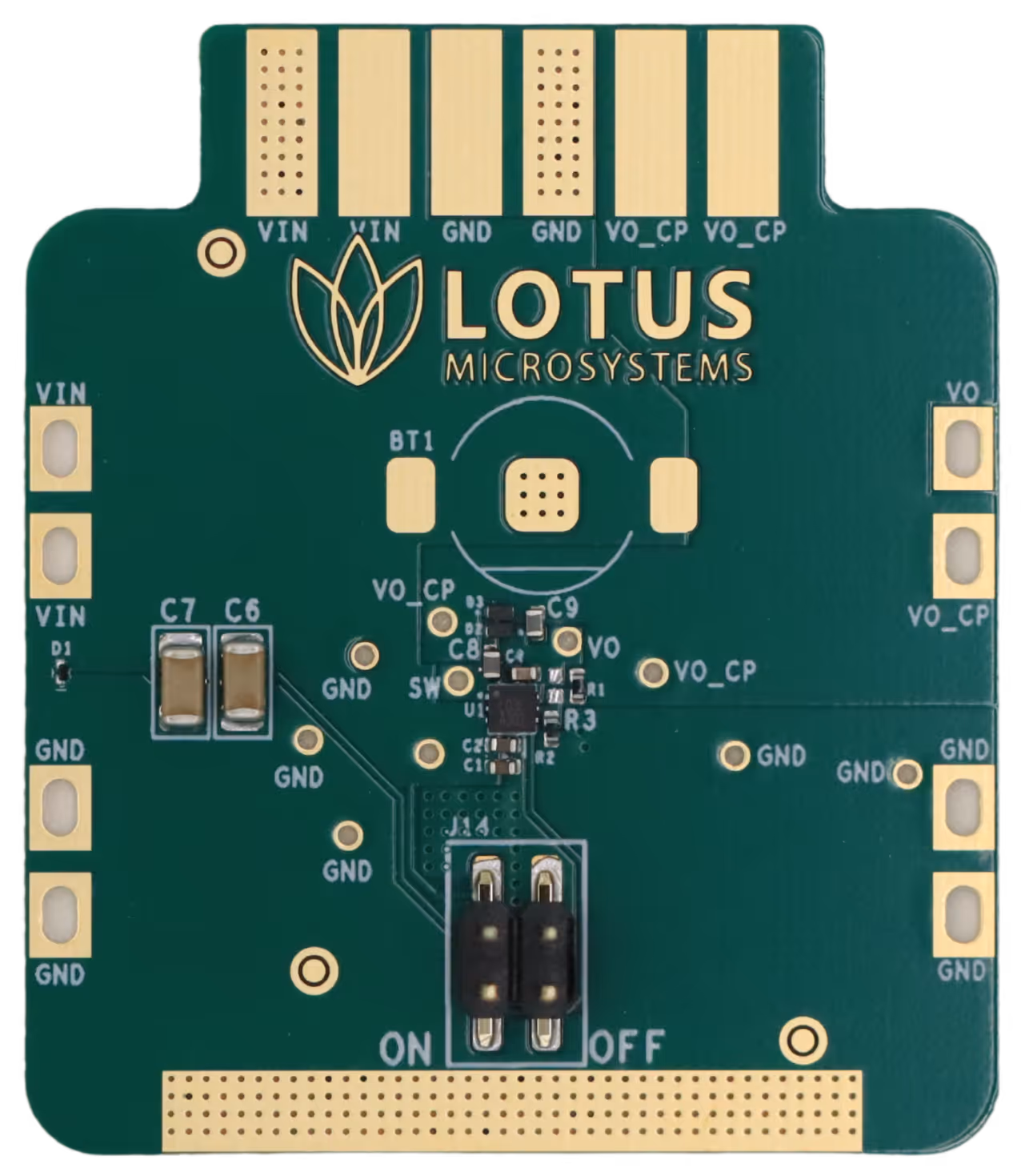

The LMU20P1-EVB is a fully assembled and tested printed circuit board that demonstrates the LMU20P1 miniaturized step-up Power Supply in Package (PSiP). The LMU20P1 itself, offers small size, high efficiency and includes an integrated circuit and an inductor in a compact 2 mm x 2 mm x 0.75 mm package.
Interested in evaluating the LBK0504? Register for early access to evaluation boards, engineering samples, and technical support from our engineering team.
