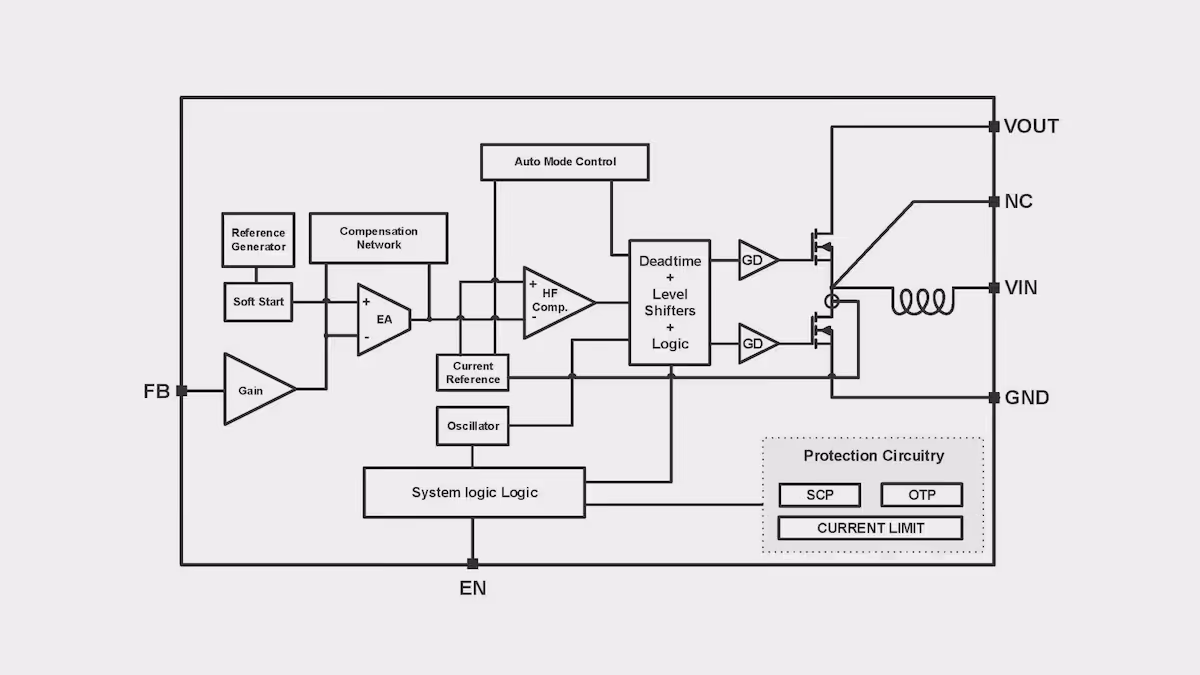

The LMU20P1 is a miniaturized step-up Power Supply in Package (PSiP) offering small size and high efficiency. The PSiP includes an integrated circuit and an inductor in a compact 6-pin LGA package, with dimensions of 2 mm x 2 mm x 0.75 mm (compatible with the DFN package footprints).
The package is optimized for automated assembly by standard surface-mount pick-and-place equipment. The LMU20P1 has a light-load efficiency enhancement function to achieve high efficiency across a wide load range, and features a range of protection circuits that include soft start, over-temperature protection, short-circuit protection and cycle-by-cycle current limit.
The LMU20P1 offers exceptionally low near-field radiation levels and a proprietary start-up circuit to minimize input inrush current.

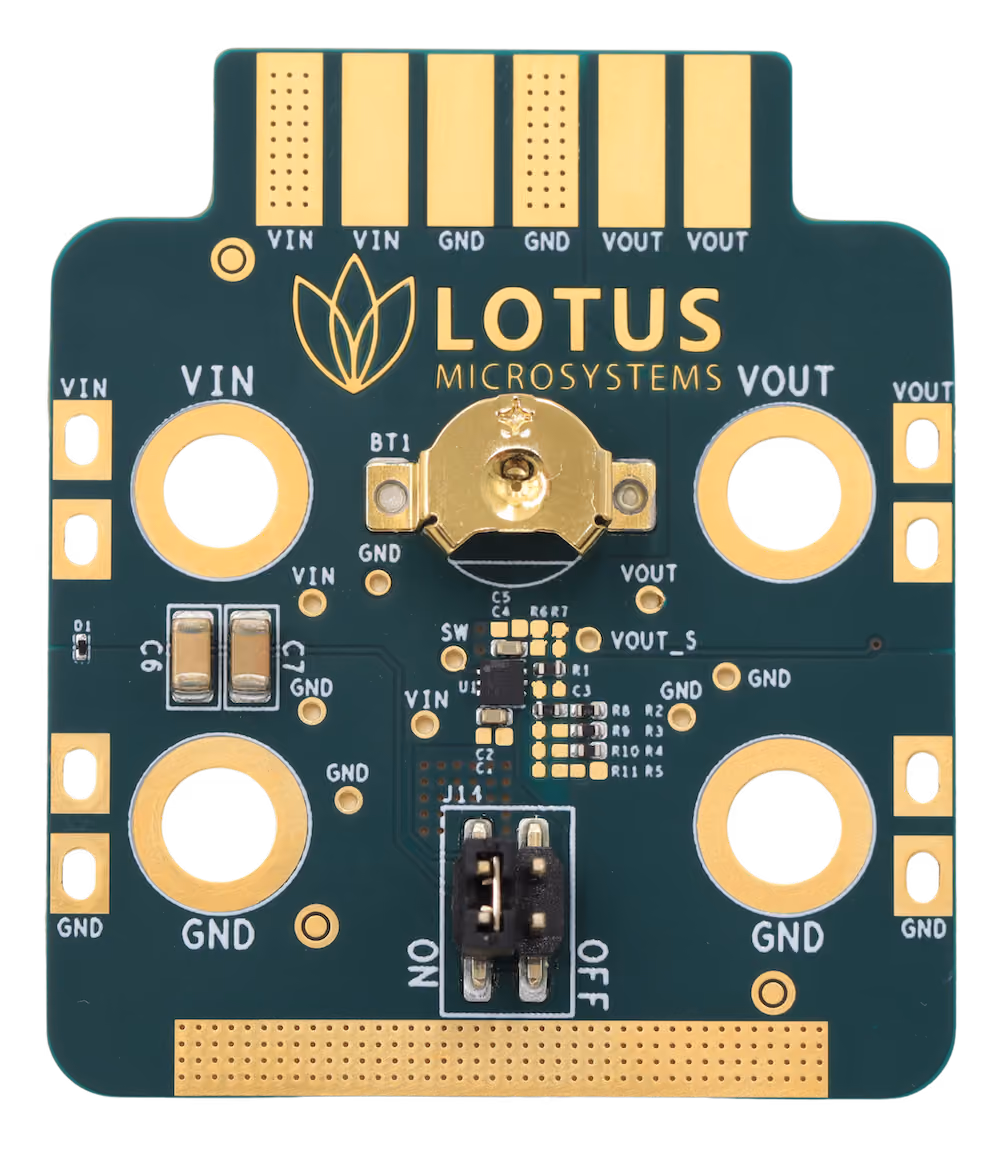

The LBK0504 evaluation board provides a streamlined platform for device characterization, providing dedicated test points the different signals. The output voltage is adjustable via a user-replaceable feedback resistor, and includes an SMB connector for synchronization to an external clock source.
The board also integrates a microcontroller on the bottom layer to manage register configurations and interface directly with the LMS PRISM Console.
Evaluation Board User Guide 100 mA Miniaturized Boost Converter
The LMU20P1-EVB is a fully assembled and tested printed circuit board that demonstrates the LMU20P1 miniaturized step-up Power Supply in Package (PSiP). The LMU20P1 itself, offers small size, high efficiency and includes an integrated circuit and an inductor in a compact 2 mm x 2 mm x 0.75 mm package.
